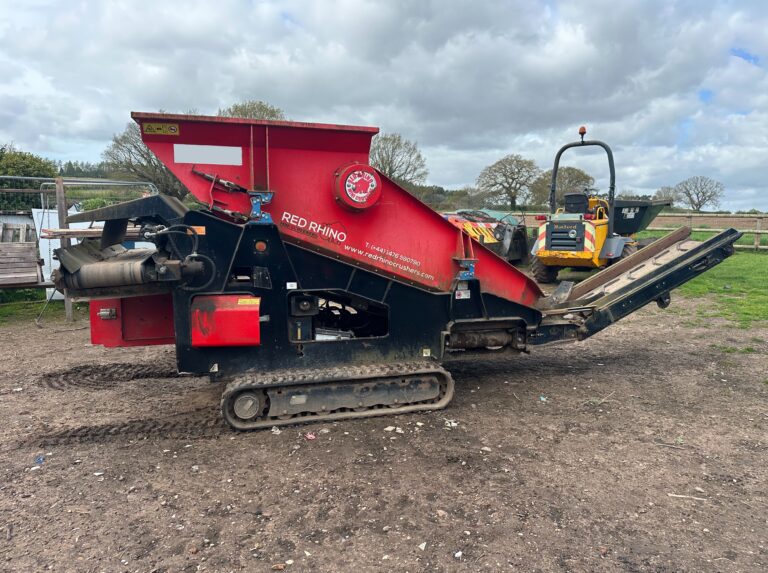

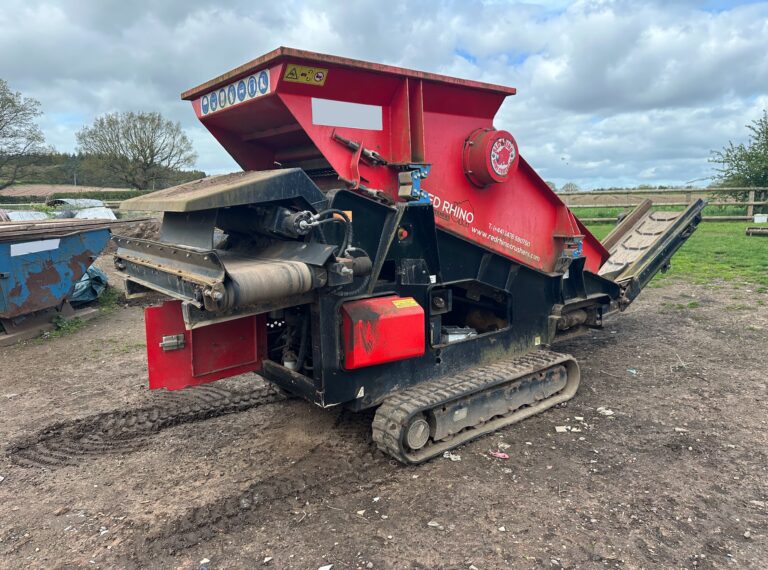

Red Rhino 3-Way Screener – Specs

Video Available On Request

🏗️ General

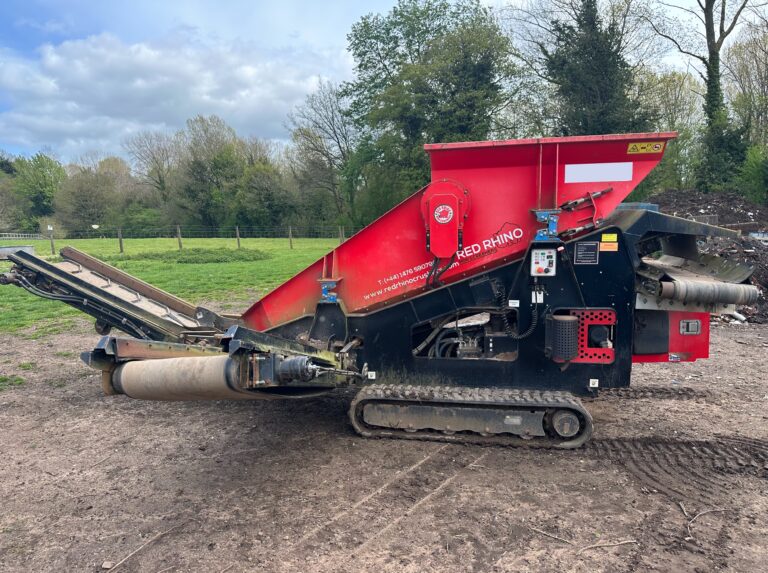

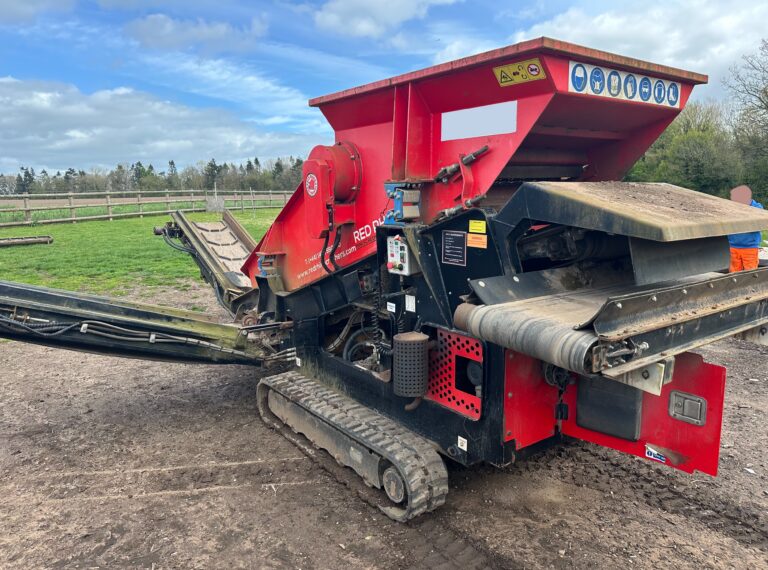

Type: Mobile tracked screener (3-way split)

Application: Soil, aggregates, crushed concrete, sand, topsoil, etc.

Outputs: 3 separate screened products (oversize / mid / fines)

⚙️ Engine & Power
Engine: Kubota 3-cylinder diesel
Power: ~18.5 kW (≈24 hp)
Fuel tank: ~60 litres

📏 Dimensions & Weight
Operating (approx):
Length: 5,960 mm
Width: 3,570 mm
Height: 2,200 mm

Transport:
Length: ~4.3 m
Width: ~1.9–2.1 m
Height: ~2.4–2.5 m

Weight:
~2.8 tonnes (≈2,800–2,850 kg)

🧱 Screening System

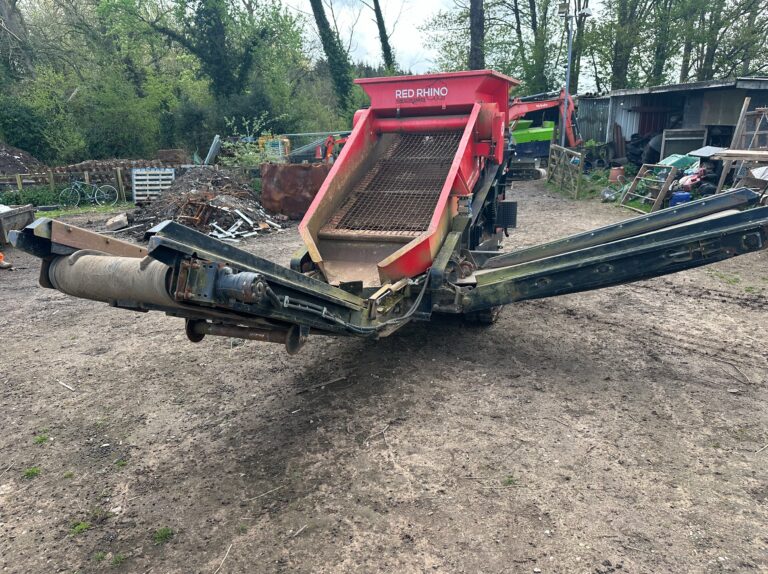

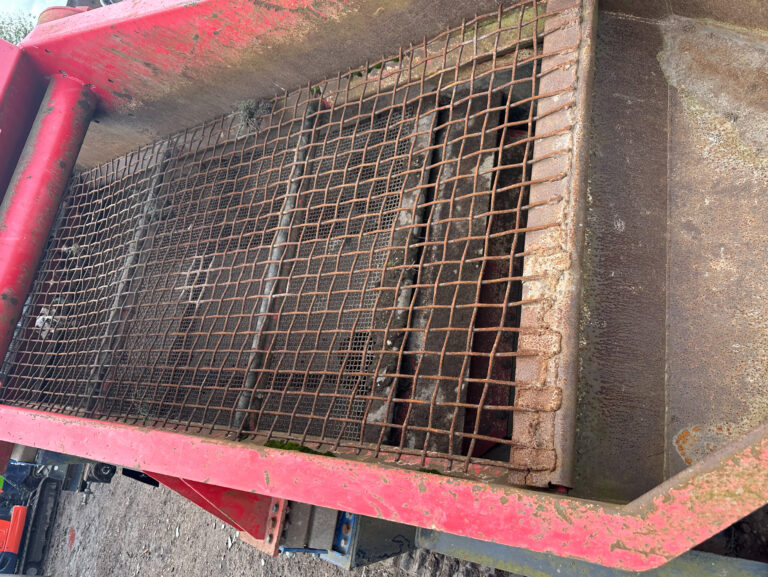

Screen type: Double-deck vibrating screen
Screen size:
Width: ~2.4 m
Length: ~1 m per deck
Max number of decks: 2

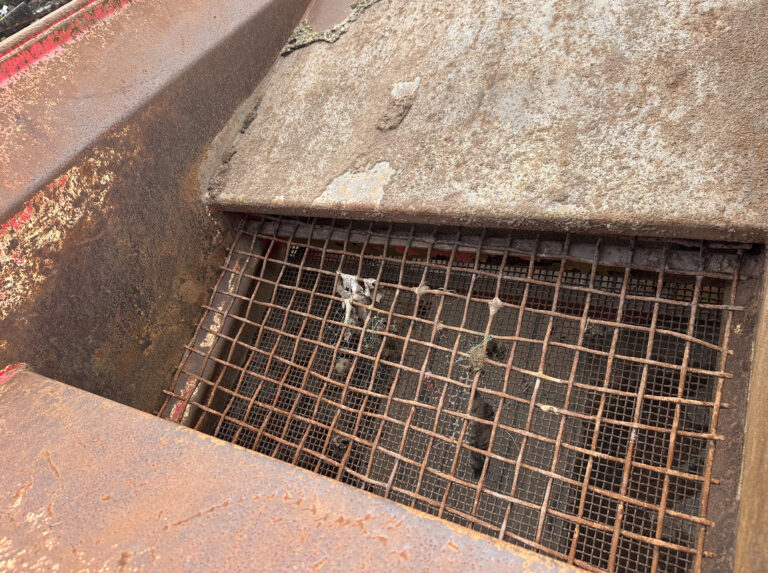

Mesh options: Interchangeable for different materials

🚜 Key Features

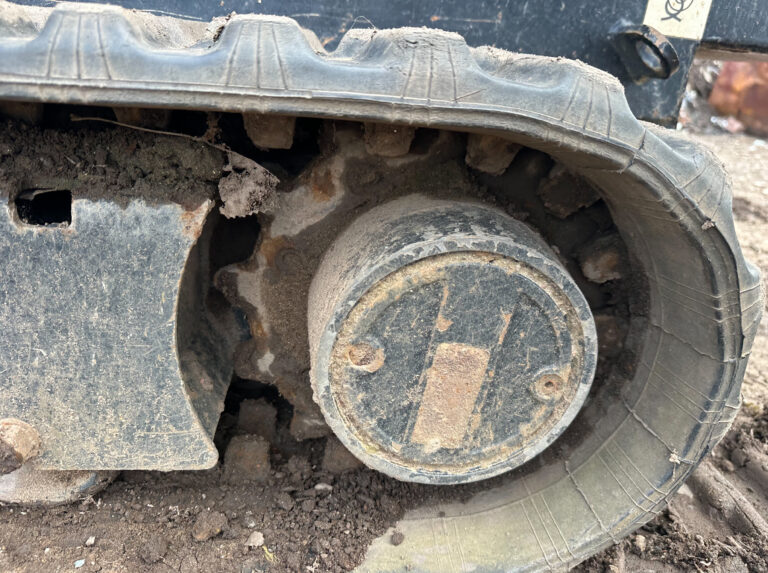

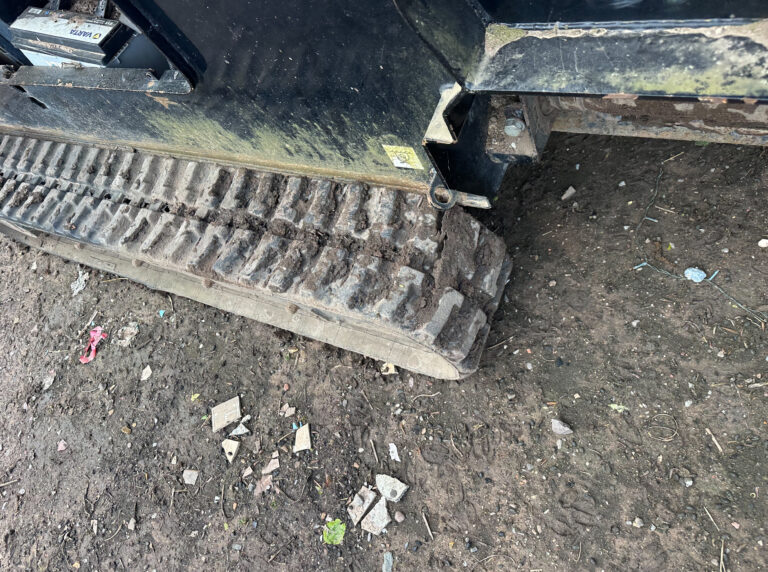

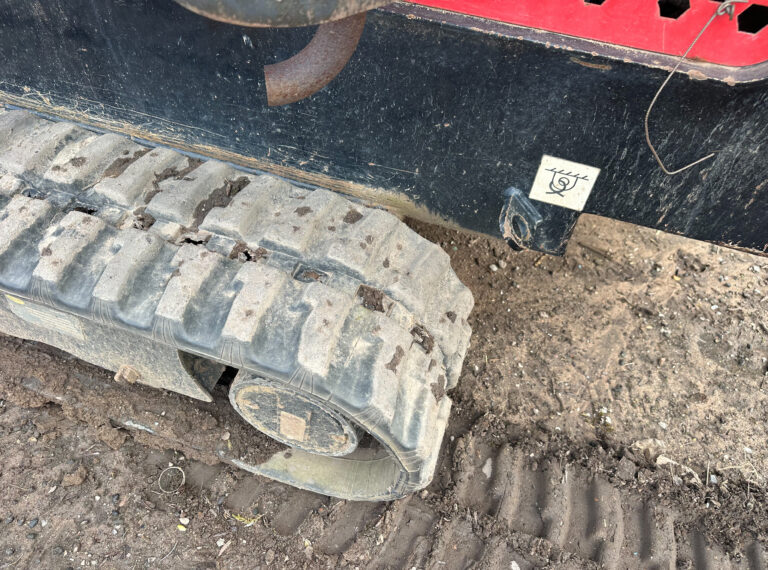

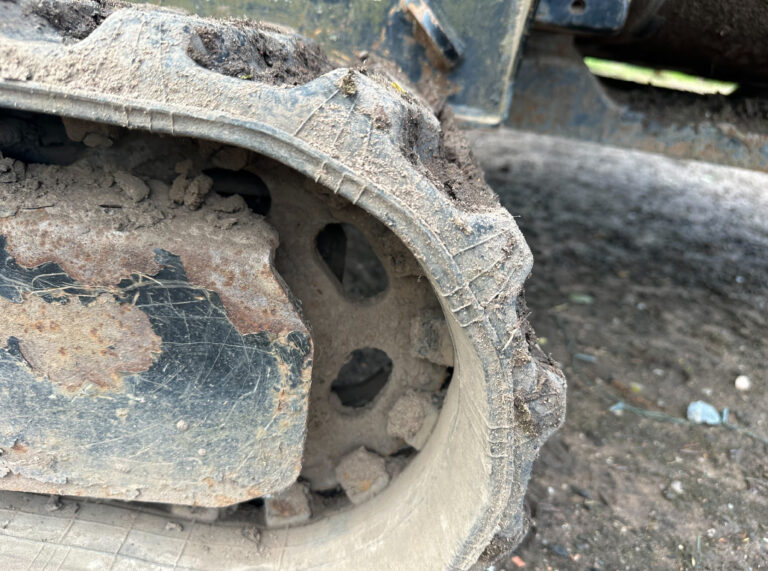

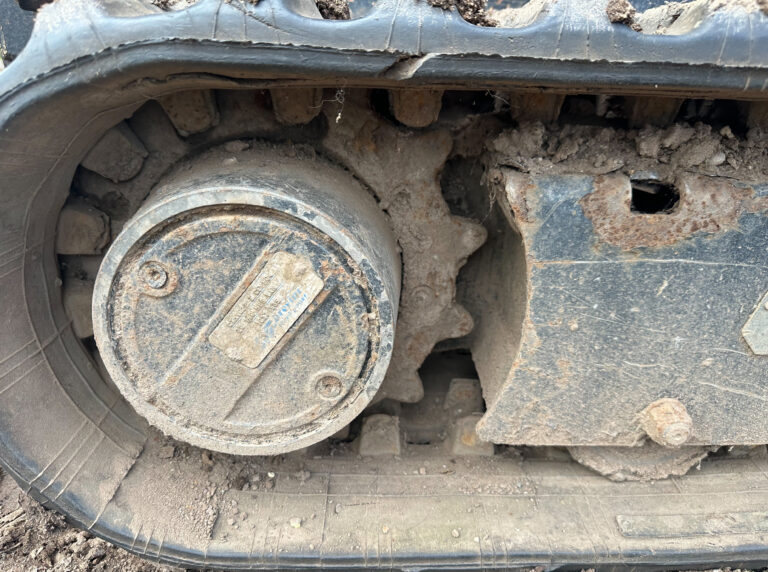

Tracked chassis (fully mobile)

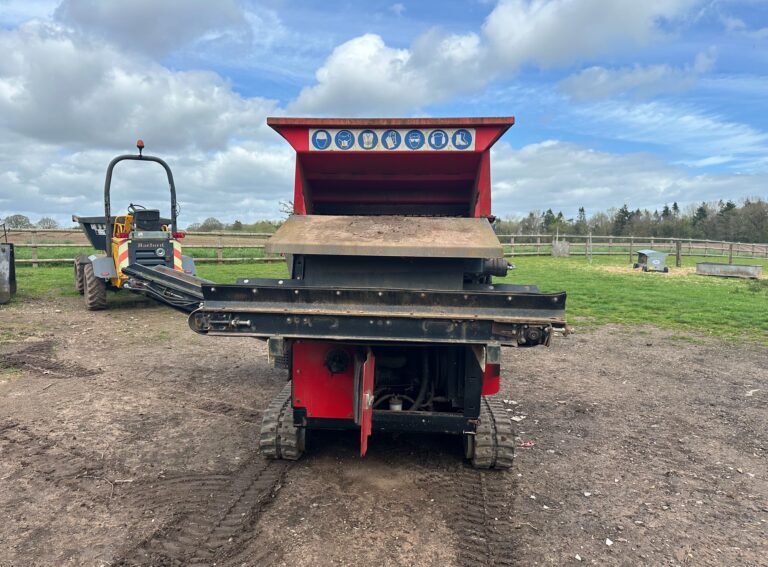

Feed hopper with impact plate

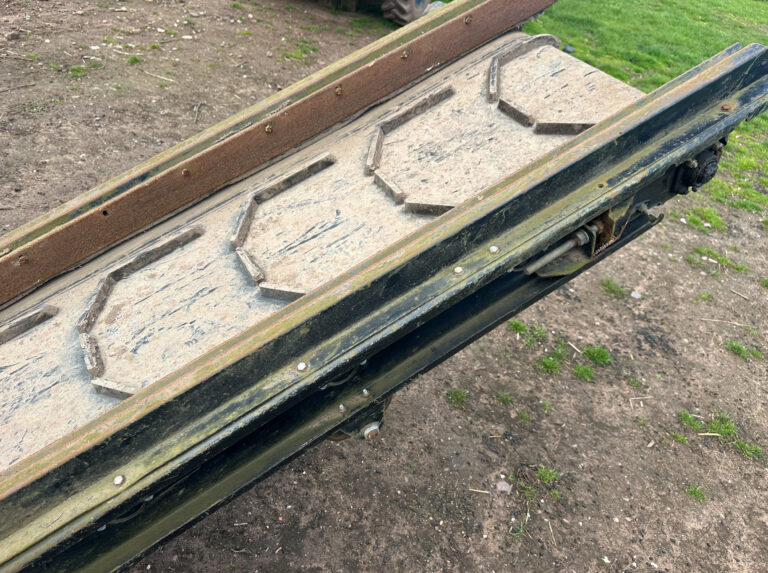

3 stockpiling conveyors (folding hydraulically)

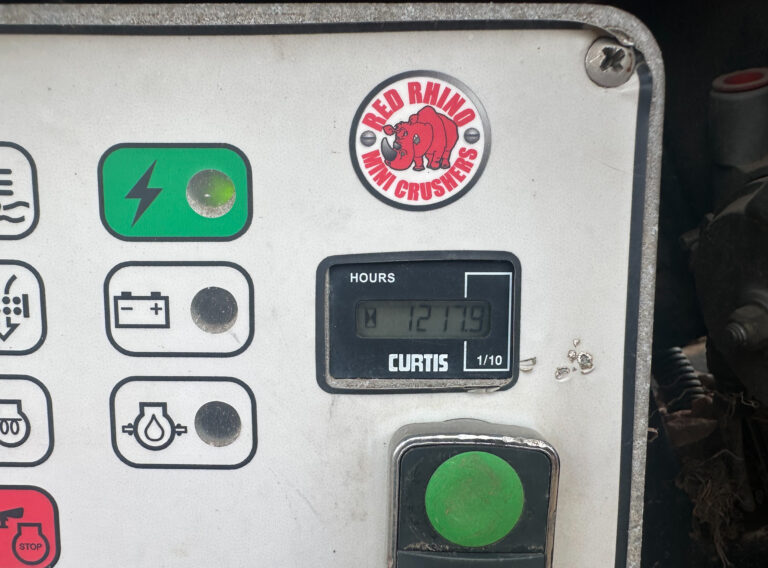

Remote control operation (umbilical or wireless depending on version)

Fast setup (≈ minutes on site)

⚡ Performance

Throughput: up to ~80 tonnes/hour (material dependent)

Can be fed by:

Excavator

Crusher conveyor

🧰 Typical Use Cases

Recycling demolition waste

Topsoil screening

Landscaping & golf courses

Hardcore / crushed rock sorting

🆚 Variants

Standard 3-Way Screener (~2.8t)

3-Way Screener Plus (~3.35t) with longer conveyors and higher stockpiles
