Operating weight (ROPS) 4,165 kg

Operating weight (cab) 4,415 kg

Maximum operating weight 5,360 kg

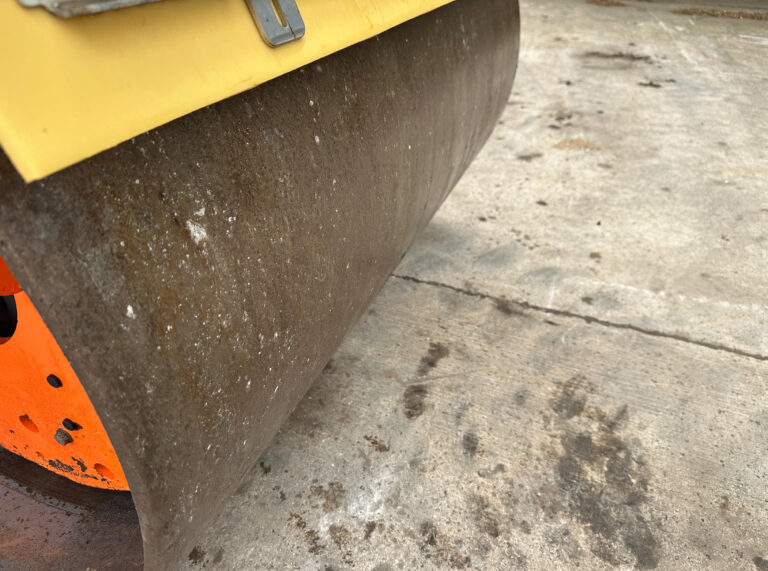

Drum width 1,300 mm

Drum diameter 900 mm

Overall width 1,426 mm

Overall length 2,965 mm

Height (ROPS) 2,590 mm

Engine Kubota V2403-CR-E5B, 4-cylinder diesel

Engine power 36.8 kW (50 hp) @ 2,700 rpm

Emissions EU Stage V / EPA Tier 4

Travel speed 0–11 km/h

Gradeability 30% with vibration, 40% without

Fuel tank 73 L

Water tank 285 L

Steering Articulated steering with 3-point articulation

Turning radius (inside) 2,690 mm

Track offset 50 mm

Sound power level 106 dB(A) guaranteed

Vibration System

Specification Value

Frequency (high/low) 60 / 51 Hz

Amplitude (high/low) 0.51 / 0.31 mm

Centrifugal force (high/low) 64 / 39 kN

Drums Front and rear vibrating drums
