Operating Weight (ROPS) 1,590 kg

Maximum Operating Weight 1,690 kg

Drum Width (front/rear) 800 mm / 800 mm

Drum Diameter 620 mm

Machine Of Excellent Order

Amber Beacon

Seatbelt Indicator

Overall Length 2,295 mm

Overall Width 938 mm

Maximum Working Width 872 mm

Height with ROPS 2,210 mm

Minimum Transport Height 1,580 mm

Wheelbase 1,560 mm

Turning Radius (inside) 2,230 mm

Engine Kubota D1105, 3-cylinder diesel

Engine Power 16.1 kW (21.6 hp) @ 2,600 rpm

Emissions Standard EU Stage V / EPA Tier 4

Fuel Tank Capacity 33 litres

Water Tank Capacity 70 litres

Travel Speed 0–11 km/h

Vibration Frequency 61 / 48 Hz

Centrifugal Force 17 / 11 kN per drum

Steering Type 3-point articulated steering

Water System Pressurised water sprinkling

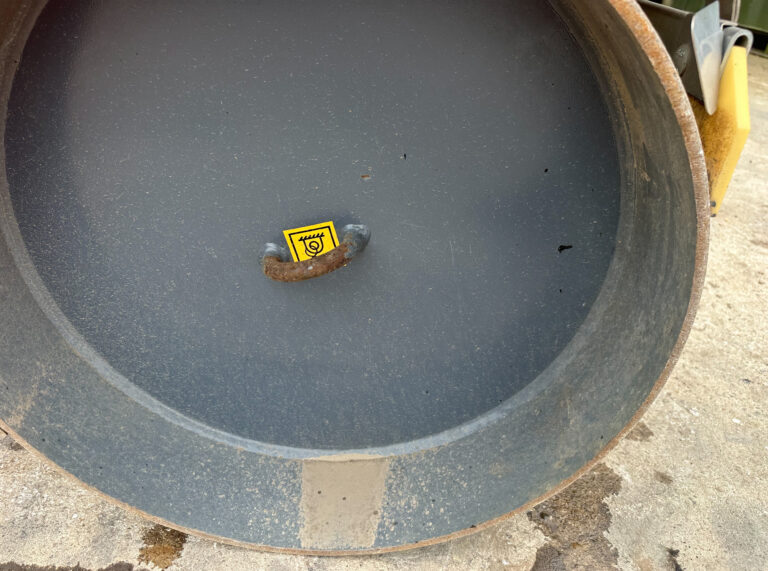

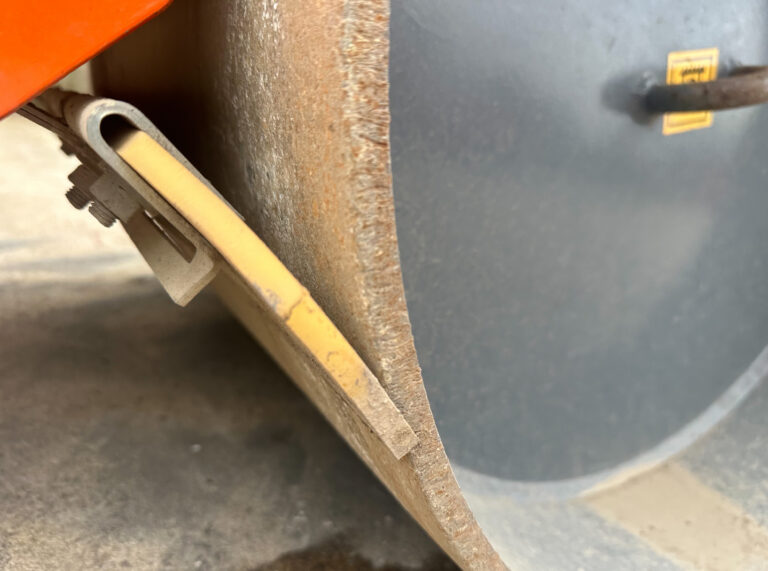

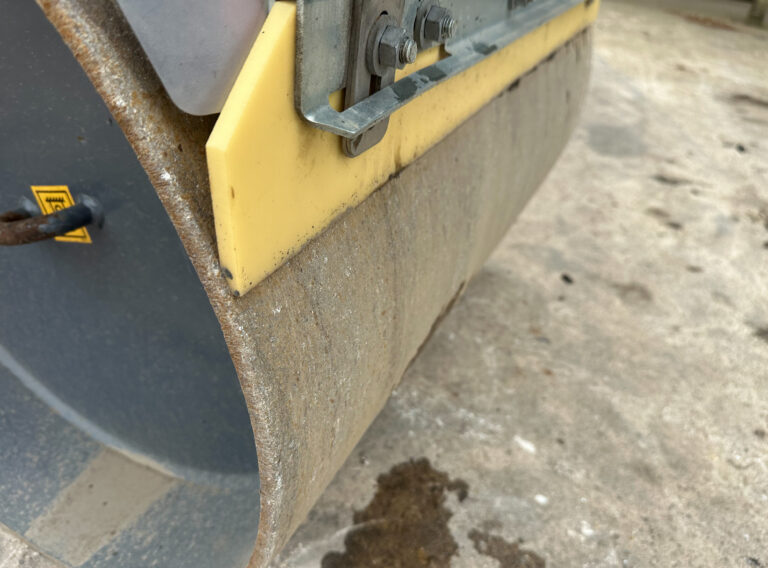

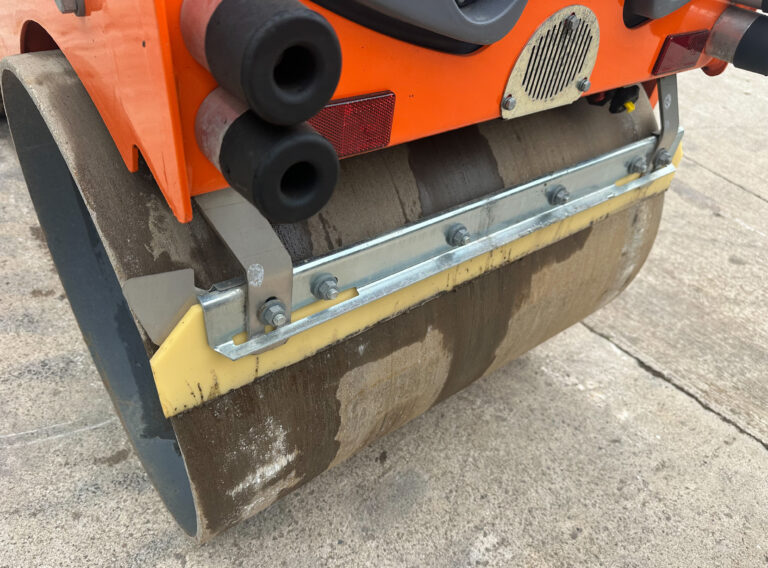

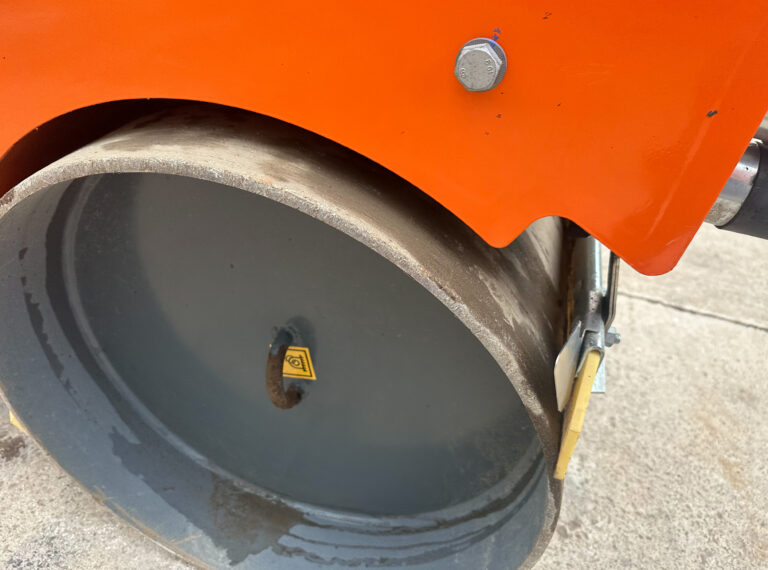

Drum Type Smooth, non-split front and rear drums
